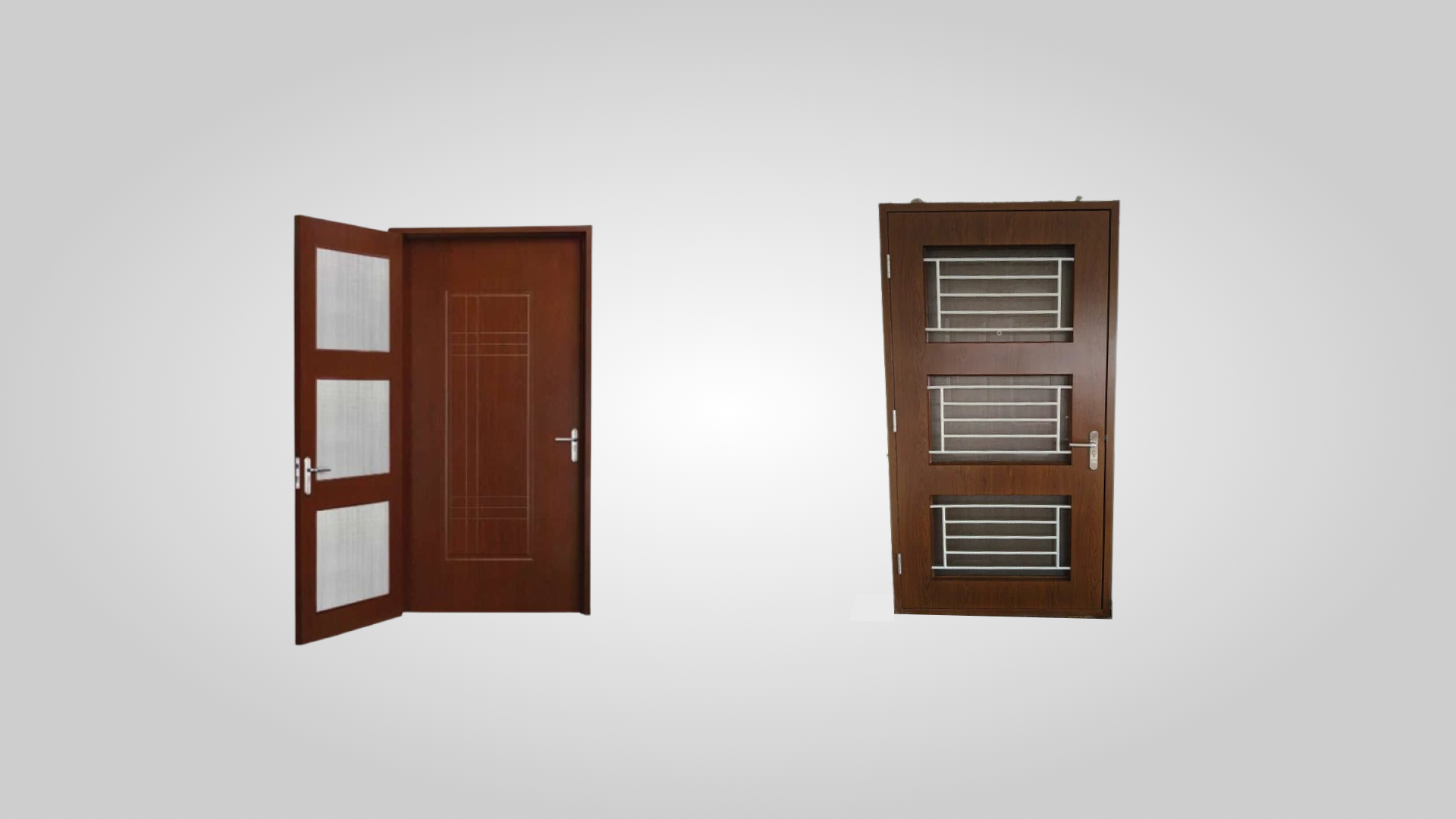

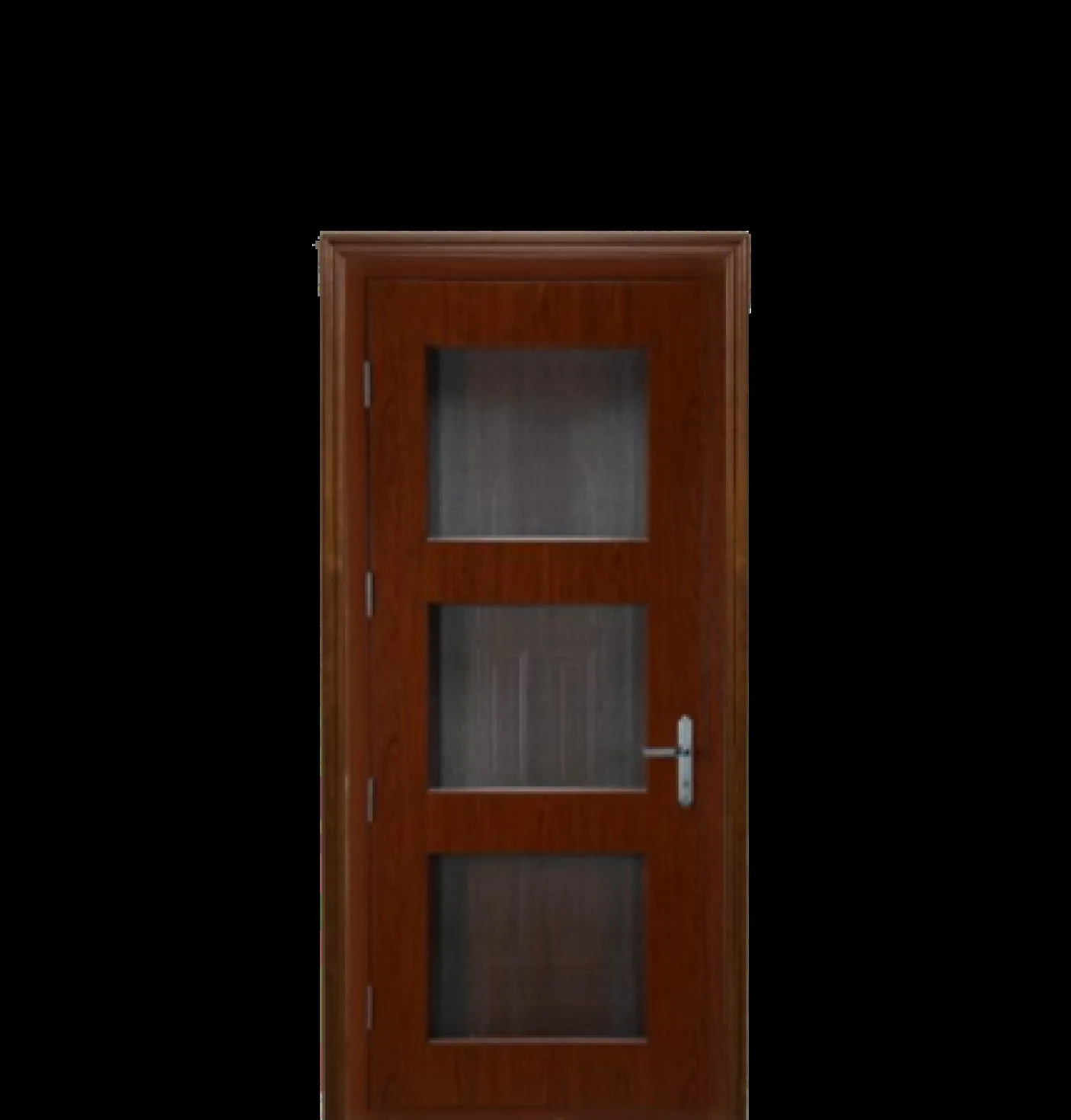

Fly Mesh Doors

Acodor Fly Mesh Doors combine security, ventilation, and style, offering durable protection against pests while enhancing your home's aesthetics with customizable designs and sleek finishes.

Acodor's Fly Mesh Doors – Secure, Stylish, and Functional

Keep your space safe and ventilated with ease.

Acodor Fly Mesh Doors, also known as Safety Grill Doors, offer the perfect blend of security, ventilation, and style for your home or office.

Material: Sturdy galvanized steel frame with high-quality mesh for durability and rust resistance.
Ventilation: Allows natural airflow while keeping insects and pests out.
Design: Sleek safety grill design with customizable patterns to enhance aesthetics.
Applications: Ideal for balconies, kitchens, and entrances requiring secure ventilation.
Sizes: Available in standard and custom sizes to fit your specific requirements.
Low Maintenance: Powder-coated finish for easy cleaning and lasting performance.
Security: Integrated safety grill provides an added layer of protection against intruders.
Color Options: Choose from a wide range of RAL shades to match your decor.

Discover the perfect combination of safety and style with Acodor's Fly Mesh Doors, designed to elevate your living or working space.

Essential Components of Acodor Fire Rated Doors

Meticulously designed to enhance safety with high-performance materials and accessories.

Each component is carefully selected to ensure durability, fire resistance, and functionality, making these doors an ideal choice for emergency exits and secure areas in commercial and industrial settings.

Door Frame: Galvanized iron (GI) sheet in 1.2, 1.6, or 2.0 mm thickness for strength and fire protection.
Door Leaf: Available in 0.8, 1.0, 1.2, or 1.6 mm GI sheet for customizable fire resistance.
Thickness & Infill: 46 mm door thickness with honeycomb or rockwool (96 kg/m³) core for effective insulation.
Vision Panel: Fire-rated glass for visibility without compromising safety.
Finish: Powder-coated surface for durability and corrosion resistance.
Essential Accessories:
- Emergency exit hardware: Panic bar for easy egress.
- Locking mechanism: Mortise deadlock for secure locking.
- Hinges: Heavy-duty stainless steel, fire-rated for durability.
- Door closer: Ensures controlled, automatic closure.
Optional Hardware:
Kick plate, push plate, concealed flush bolt, smoke seal, door stopper, and door coordinator for enhanced functionality and protection.

Manufacturing of Fire-rated Doors at Acodor Factory

Are you looking for Fire Rated Steel Doors?

We will be happy to help you find the ideal solution tailored to your business.

Send non-binding inquiry

Features of Acodor Fire Rated Steel Doors

Acodor doors offer exceptional fire resistance and protection, providing peace of mind in fire emergencies.

Fire Resistance
- Fire ratings available for 60, 90, 120, and 180 minutes.
- Provides essential protection against flames and smoke.
Tested & Certified
- Certified to Indian, British, and American standards.
- Tested by CBRI, NABL, and recognized international agencies.
Infill Material Options
- Multiple infill options like honeycomb core and mineral wool.
- Designed for both un-insulated and insulated fire doors.
Compliance with Standards
- Complies with IS 3614, BS 476 Part 20 & 22.
- Fully adheres to NBC 2016 guidelines for fire safety.
Durability & Strength
- Made from high-quality, heat-resistant steel.
- Offers long-lasting durability even in extreme conditions.
Flexible Sizing Options
- Available in sizes ranging from 700x2100 mm to 2400x2400 mm.
- Custom sizes for different structural needs.

Engineered with precision to provide effective fire protection, durability, and a range of customization options to match various architectural needs.

Request Customised Quote as per your Project Requirement

Precision-Engineered Door Frames for Strength and Style

Acodor’s door frames combine high-strength galvanized or stainless steel with sleek, modern designs. Available in single or double rebate styles with custom assembly heights, they ensure stability, durability, and a seamless fit for any architectural requirement.

Material Options: Galvanized Steel or Stainless Steel, designed for durability and corrosion resistance.
Sheet Thickness (Gauge): Available in 14, 16, 18, or 20 gauge, providing options for varying levels of fire resistance and durability.
Standard Frame Sizes:
- Single Rebate Frame: 100mm x 57mm or 100mm x 70mm, ideal for single-swing or paired doors.
- Double Rebate Frame: Available with mitered, butted, or welded joints for enhanced stability.
Frame Assembly Heights: 2100mm, 2200mm, and 2400mm options to fit various wall openings.

Frame Standard Design

Frame Assembly Details

Advanced Door Leaf Construction for Ultimate Strength and Insulation

Acodor’s door leaf options are designed for durability, insulation, and versatility, featuring core materials like honeycomb, rockwool, and polyurethane. Each core type is carefully selected to meet specific needs, from fire resistance to acoustic insulation, ensuring a secure and energy-efficient solution for any environment.

Versatile Finishes for Every Style

Choose from durable powder coating in vibrant RAL colors or a sleek stainless steel finish to match your design needs. Both options offer excellent performance with a stylish touch.

Powder Coating: A durable, corrosion-resistant finish available in a wide range of RAL colors, including Traffic Red, Sky Blue, Gentian Blue, and Pebble Grey, offering flexibility to match aesthetic requirements.
Stainless Steel Finishing: A polished, sleek finish perfect for modern or industrial architectural styles, adding an elegant touch to your interior.

Color Codes

Customizable Door Elevations for Every Need

Our Acodor Fire Doors offer a variety of elevation styles, from sleek flush designs to elegant glass and louvered options, ensuring both functionality and aesthetic appeal for any space. Tailor the door's look to fit your unique requirements.

Flush
Vision Light
Rectangle Glass
Round Glass
Narrow Light
Half Glass
Two Half Glass
Full Glass
Vision Light with Louvered
Full Louvered

Customization options for glass and louvered sections are available to balance visibility and ventilation needs, making Acodor Fire Doors suitable for a range of applications, from commercial spaces to specialized environments.

Essential Hardware Components for Maximum Safety and Functionality

Our Acodor Fire Doors are equipped with high-quality hardware components designed to ensure both safety and ease of use.

Vision Panel (optional): Fire-rated glass panel offers visibility without compromising fire safety.
Flush Tower Bolt: Enhances security and ensures the door stays securely aligned when closed.
External Trim: Polished finish adds elegance and is easy to grip.
Panic Exit Device: Enables fast and safe exits during emergencies.
Auto Drop Seal: Expands to seal gaps, blocking smoke and enhancing fire containment.
Door Closer: Controls door closing speed to support fire protection and controlled access.
D Type Handle: Ergonomically designed for comfort and durability in high-traffic areas.
Mortise Dead Lock: Reinforced locking system for added security.
Door Infill: Options include honeycomb or high-density mineral wool for insulation and fire resistance.
Door Stopper: Prevents excessive door movement, protecting it from damage.
Kick Plate: Shields the lower section of the door from wear and tear in high-traffic areas.
